中文Automatic Folder Gluer Stitcher

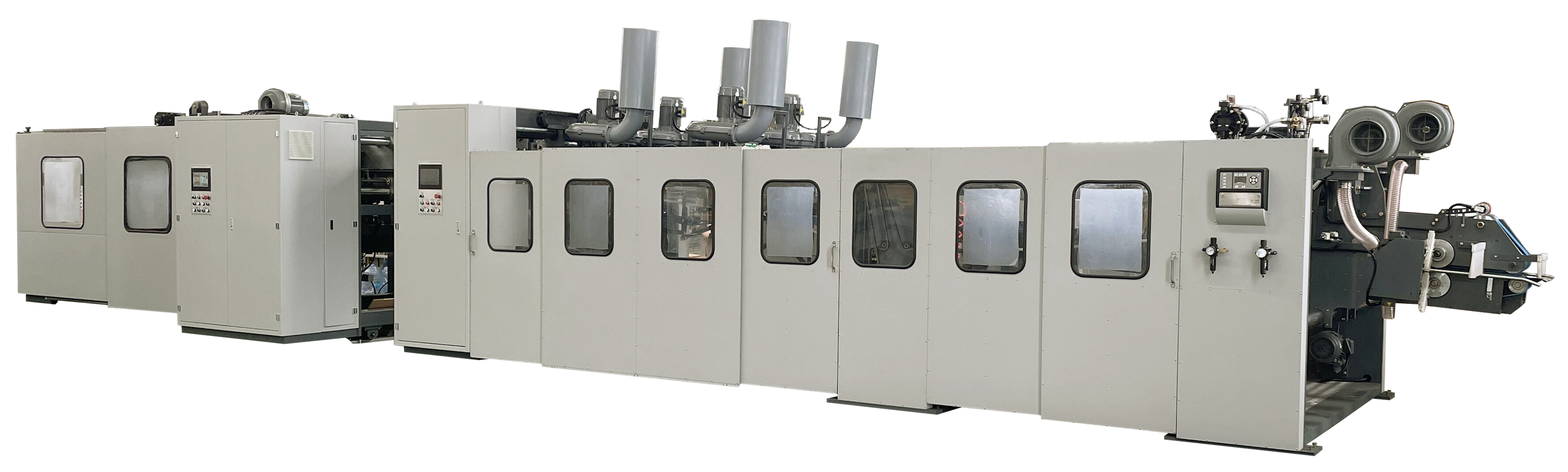

Automatic corrugated carton box folder gluer stitcher inline flexo printer slotter, cardboard box folding gluing stitching machine mainly used in food corrugated carton box, fruit carton box, industry carton box and other various corrugated packaging application. It is with high speed folding gluing stitching production, PLC program system, intelligent controlling and order memory system application.
|
Model |
X-300 |
|
Max gluing speed |
200m/min |
|
Max feeding size |
2500*1200mm |
|
Min gluing feeding size |
750*300mm |
|
Min stitching feeding size |
800*300mm |
|
Available material |
Corrugated board |
|
Max stitching speed |
140pcs/min (3 stitching) |
|
Max stitching head speed |
1200 stitches/min |
|
Stitching wire |
Width: 1.95mm, Thickness: 0.75mm |
|
Stitching distance |
30-100mm |
|
Slanting of the stitch |
45º |
|
Total power |
70kw |
|
Voltage |
380V, 50HZ, 3Phase |
|
Dimension |
16000*3100*2600mm |
|
Weight |
21tons |
|
|
|||
|
Item |
Max |
Min |
|
|
Folding gluing |
W |
2500 |
750 |
|
L |
1200 |
300 |
|
|
A |
850 |
250 |
|
|
B |
600 |
130 |
|
|
Folding stitching |
W |
2500 |
800 |
|
L |
1200 |
300 |
|
|
A |
850 |
240 |
|
|
B |
600 |
160 |
|
